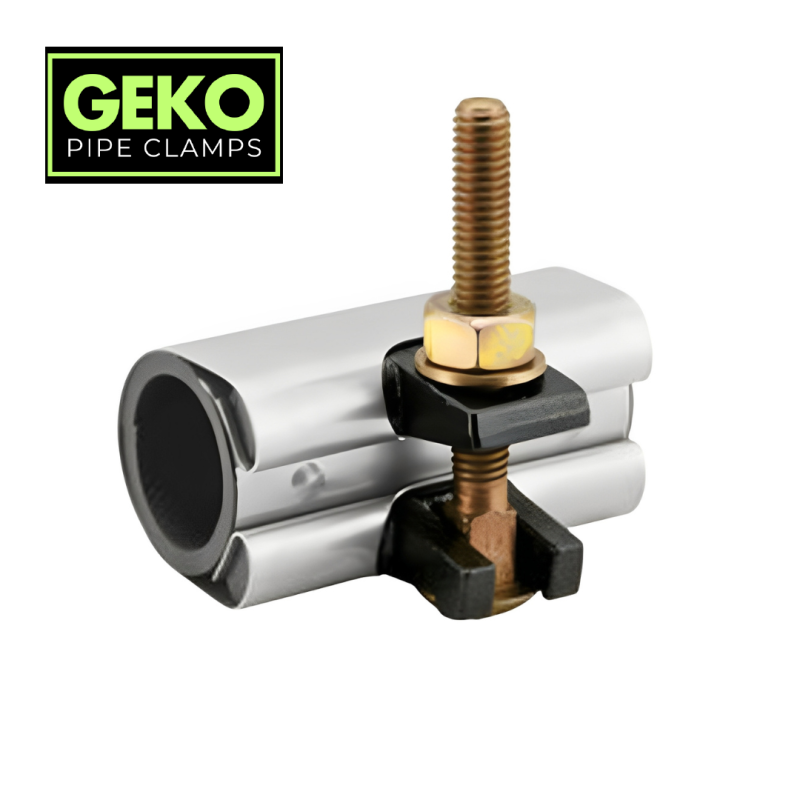

Geko 360° Band Clamp
Geko 360° Degree Band Clamp. Equipped with a full-circle gasket to ensure maximum seal integrity and dependable performance.
Geko 360° Degree Band Clamp. Equipped with a full-circle gasket to ensure maximum seal integrity and dependable performance.
Can be used on the following materials:
- Steel
- Ductile and Cast Iron pipelines - Gas, Water, Oil, Ammonia etc.
Available Sizes and Specifications
3" Wide – 1 Bolt
| Size | Part # | Approx. Weight (lbs) | O.D. Range |
|---|---|---|---|
| 1/2" | G1039 | 0.50 | 0.84 |
| 3/4" | G1040 | 0.78 | 1.05 |
| 1" | G1041 | 0.85 | 1.32 |
| 1¼" | G1042 | 0.92 | 1.66 |
| 1½" | G1043 | 1.03 | 1.90 |
| 2" | G1044 | 1.50 | 2.38 |
6" Wide – 2 Bolts
| Size | Part # | Approx. Weight (lbs) | O.D. Range |
|---|---|---|---|
| 3/4" | G1045 | 1.56 | 1.05 |
| 1" | G1046 | 1.50 | 1.32 |
| 1¼" | G1047 | 1.87 | 1.66 |
| 1½" | G1048 | 2.05 | 1.90 |
| 2" | G1049 | 3.00 | 2.38 |
Component Specifications
| Band | 18-8 Type 304 Stainless Steel |
| Bolts & Nuts | : 18-8 Type 304 Stainless Steel |
| Gasket | BunaN Rubber |
| Side & Lifter Bar | 188 Stainless Steel |
| Max Pressure Rating | 2" - 500 psi 3" - 4" - 450 psi 6" - 350 psi 8" - 250 psi 10" - 200 psi 12" - 175 psi |
| Temp. rating | 250° F |
Hardware Torque Specifications
| 3/8" Bolts 1/2" to 1-1/2" OD | 15-25 FT-LBS |
| 1/2" Bolts up to 2.00"- 4.73" OD | 30-35 FT-LBS |
| 5/8" Bolts over 4.74" OD | 70-80 FT-LBS |
