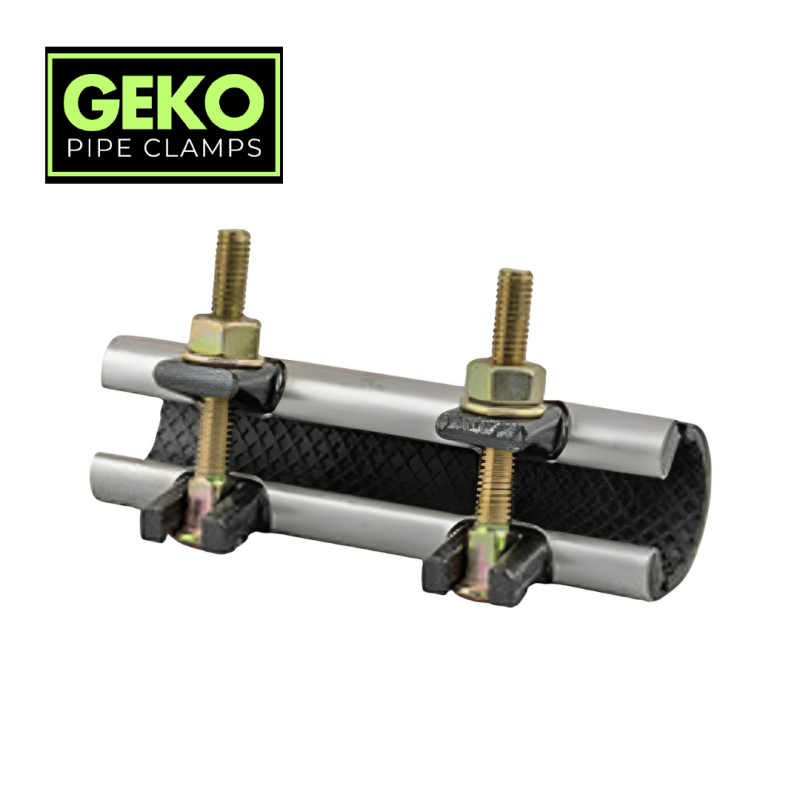

Geko Snap Band Clamp
search
  • Geko Snap Band Clamp

Geko Snap Band Clamp

Request Pricing

Designed to seal pinholes and minor leaks that don’t require a full gasket replacement.

Quantity

Geko Snap Band Clamp. - Designed to seal pinholes and minor leaks that don’t require a full gasket replacement.
Can be used on the following materials:
- Steel
- Ductile and Cast Iron pipelines - Gas, Water, Oil, Ammonia etc.

Available Sizes and Specifications

3" Wide – 2 Bolts

Size Part # Approx. Weight (lbs) O.D. Range
1/2" G1001 0.54 0.84
3/4" G1002 0.55 1.05
1" G1003 0.56 1.32
1¼" G1004 0.58 1.66
1½" G1005 0.60 1.90
2" G1006 1.00 2.38
2½" G1007 1.05 2.88
3" G1008 1.30 3.50
3½" G1009 1.35 4.00
4" G1010 1.40 4.50
6" G1011 1.85 6.63
8" G1012 2.20 8.63

6" Wide – 2 Bolts

Size Part # Approx. Weight (lbs) O.D. Range
1/2" G1013 1.08 0.84
3/4" G1014 1.10 1.05
1" G1015 1.12 1.32
1¼" G1016 1.16 1.66
1½" G1017 1.20 1.90
2" G1018 2.00 2.38
2½" G1019 2.10 2.88
3" G1020 2.60 3.50
3½" G1021 2.70 4.00
4" G1022 2.80 4.50
5" G1023 3.20 5.56
6" G1024 3.70 6.63
8" G1025 4.40 8.63

9" Wide – 3 Bolts

Size Part # Approx. Weight (lbs) O.D. Range
2" G1026 3.20 2.38
2" G1032 4.00 2.38
2½" G1033 4.20 2.88
3" G1027 3.60 3.50
3" G1034 5.20 3.50
3½" G1035 5.60 4.50
3½" G1028 4.00 4.50
4" G1029 4.80 5.56
4" G1036 6.40 5.56
6" G1030 6.20 6.63
6" G1037 6.90 6.63
8" G1031 6.60 8.63

Component Specifications

Band 304 Stainless Steel
Gasket Buna-N Rubber
Lugs Nodular Iron
Bolts Alloy with Heavy Hex Nuts
Pressure Rating 300 psi max
Temp. rating 250° F

Hardware Torque Specifications

3/8" Bolts 1/2" to 1-1/2" OD 15-25 FT-LBS
1/2" Bolts up to 2.00"- 4.73" OD 30-35 FT-LBS
5/8" Bolts over 4.74" OD 70-80 FT-LBS
